3-5 Ton/hour Feed Pellet Processing Factory Layout Design

Factory Output: 3-5 ton per hour
Target Client: This includes medium to large livestock farms, commercial feed distributors, aquaculture farms, individual breeders, and other entities involved in animal husbandry that are looking for a steady supply of quality feed pellets.
Plant Layout Design: Raw material storage areas, pre-processing areas, centralized placement areas for pellet milling equipment, ample operating space, organized areas for cooling, screening and packaging, as well as office space, employee amenities and equipment maintenance.

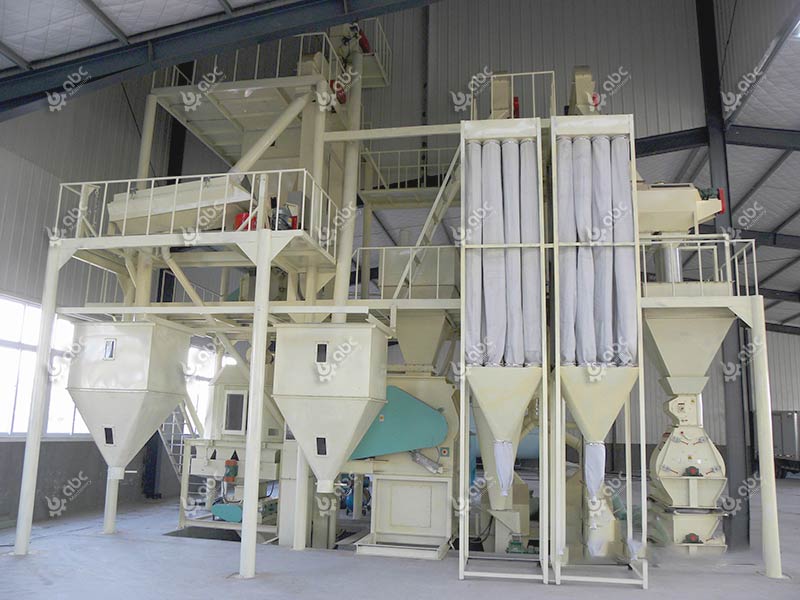

Cost-effective 3-5tph Chicken Cattle Fish Feed Pellet Mill
Cost-effective 3-5tph Feed Pellet Plant for Chicken/Cattle/Fish

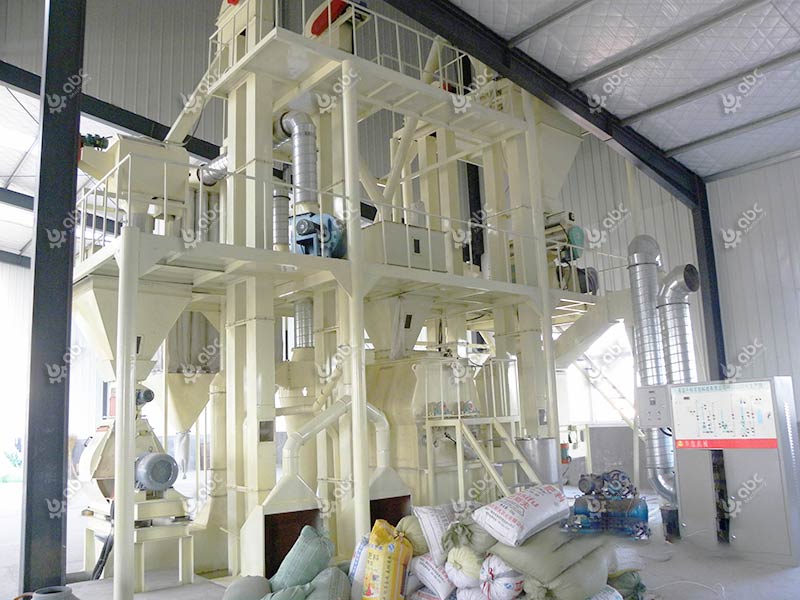

3-5tph Animal Feed Mill Equipment at Factory Price
Factory Price 3-5tph Animal Feed Mill Equipment for Sale

 3-5TPH Feed Milling Equipment Plant Overall Factory Layout

A well-organized layout is essential for the efficiency of your own 3-5ton/h animal feed pellet production plant. Therefore, the feed milling factory should be strategically located for easy transportation of raw materials and efficient distribution of finished products.

Plant Layout Design Overview

Typically, the animal feed pellet making plant includes areas for raw material storage, production, finished product storage, and office space.

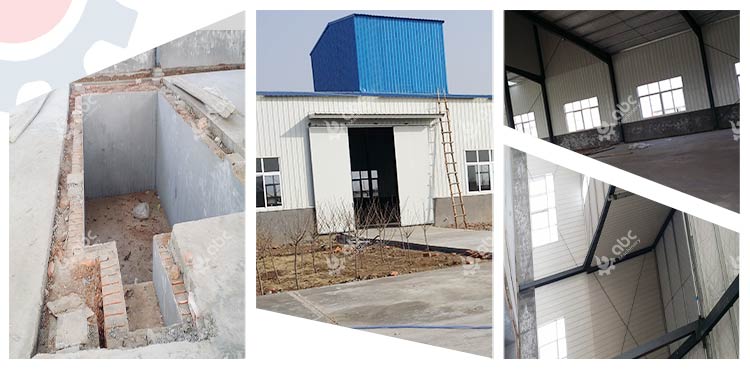

3-5ton Per Hour Feed Pellet Mill Layout Design

Animal Feed Pellet Production Plant Layout Design

  • Raw Material Storage Area:

Equipped with storage facilities for different types of feed ingredients, ensuring the freshness and quality of raw materials. And common raw materials include grains, protein sources, fats, minerals, vitamins, additives, and other specific ingredients to ensure a continuous production process catering to the diverse nutritional needs of different animal species and growth stages.

  • Processing Area:

Primarily dedicated to transforming raw materials into shaped feed pellets through a series of processes, with core equipment including: crushers, mixers and SBPM series ring die feed pellet mills, organized in a streamlined production line for crushing, mixing, and pelletizing processes.

  • Finished Product Storage Area:

Includes warehouses and cooling equipment to ensure timely cooling of newly produced feed pellets, preventing quality degradation.

  • Office Area:

Located near the production area, housing management offices, a research and development lab, and staff break rooms.

Selection of Core Production Equipment

Choosing efficient and reliable production equipment is crucial for improving production efficiency and product quality.

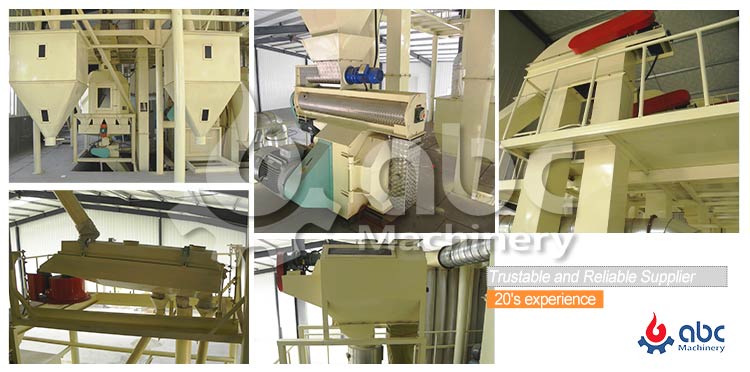

Core Feed Mill Equipment Selection
Core Feed Mill Equipment Selection

  • Raw Materials Crushing Machine: Used to crush feed raw materials into appropriate particle sizes, providing suitable raw materials for subsequent production steps.

  • Mixing Machine: Achieves uniform mixing of different feed ingredients, ensuring thorough dispersion of components within the pellets.

  • Feed Pellet Mill: The core equipment of the entire production line, using compression and heating to produce high-quality feed pellets.

  • Cooling Machine: Rapidly cools newly produced pellets to prevent clumping or quality loss during storage and transportation.

  • Packaging Machine: Packages finished pellets into appropriate specifications for easy storage and transportation.

Advanced Automation Control System

Introducing a highly automated control system is essential for real-time monitoring and remote control of the production process. This aids in improving production efficiency, reducing operating costs, and ensuring the consistency and quality of pellets. Modern control systems should encompass data collection, fault diagnosis, and remote control functions to adapt to the fast-paced production environment.

 Environmental Sustainability and Energy-Efficient Design

Environmental sustainability and energy efficiency are critical considerations in feed pellet production. Choosing advanced environmental technologies helps reduce wastewater and exhaust emissions, contributing to lower environmental impact. Additionally, the factory design should prioritize energy-efficient equipment selection to reduce production costs.

 Safety and Training Facilities

The safety of the factory directly correlates with the safety of employees and equipment. Establishing safety standards, implementing advanced safety equipment, and providing training programs ensure the safety of employees during the production process. Safety measures should include emergency response procedures and continuous training to ensure proficiency in equipment operation.

In a word, the design of a feed pellet production plant with a capacity of 3-5 tons per hour requires careful consideration of overall layout, equipment selection, automation, environmental sustainability, energy efficiency, safety, and training. By implementing these key elements, the plant can achieve high efficiency, produce quality feed pellets, and maintain a competitive edge in the market. Fill the table below to get a quote for your exclusive customized 3-5 ton per hour animal feed milling equipment!
