BBQ Charcoal Extruder

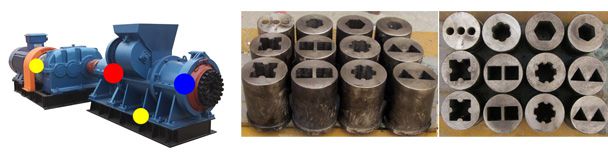

BBQ Charcoal Extruder is also named as Barbecue Charcoal Machine. It is designed for making charcoal stick products. The shape of final charcoal products can be customized by changing briquetting moulds, it can be hexagon, cylinder or quadrangle. The charcoal can be made with or without holes. Binder is needed in most situations to ensure the stability and density of BBQ charcoal.
GEMCO Barbecue Charcoal Machine is of reasonable structure and easy operation and maintenance. The briquettes made by this machine features high density, high heat value, good flammability and low pollution.
GEMCO BBQ CAHRCOAL EXTRUDER PRODUCT LIST
Small Charcoal Extruder
BBQ Charcoal Extruder for Sale
| Model | XTEP-150 |
|---|---|
| Output |
150 kg/h (diameter 30mm) 200 kg/h (diameter 40mm) 250 kg/h (diameter 50mm) |
| Power |
7.5 KW (Main motor 5.5 KW + Automatic laser briquette breaker 1.1KW + force feeder 1.1KW) |
| Diameter of Finished BBQ Briquettes | 22-65mm |
| Overall size | 1300*800*1600mm |
| Packing size | 1550*1310*1360mm |
Medium Charcoal Extruder
Barbecue Charcoal Extruder for Sale
| Model | XTEP-180 | XTEP-300 |
|---|---|---|
| Material Of Pressure Cylinder | Welded-steel | 45# Cast steel |
| Diameter Of Pressure Cylinder | 185MM | 300MM |
| Material Of Impeller | Wear Resisting Cast Iron | Wear Resisting Cast Iron |
| Material Of Nozzles | Manganese Steel | Manganese Steel |
| Diameter Of Impeller | 180MM | 280MM |
| Longth Of Impeller | 520MM | 640MM |
| Speed Of Mainshaft | 135r/min | 76r/min |
| Power | 30KW | 75KW |
| Shape Of Final Products | Customized | Customized |
| Size | 2015X900X700 | 2850X1350X1150 |
| Moisture Content Of Raw Material | 12-14% | 12-14% |
| Size Of Final Briquettes | ＜3mm | ＜3mm |
| Capacity | 2-3T/H | 5-6T/H |
Large Charcoal Extruder
Large BBQ Charcoal Extruder Machine
| Model | XTEP-140 | XTEP-160 | XTEP-210 | XTEP-300 | XTEP-400 |
|---|---|---|---|---|---|
| Capacity | 1-2T | 2-3T | 3-4T | 3-5T | 6-10T |
| Specification | 20-40 | 20-60 | 20-80 | 20-80 | 20-80 |
| Speed of main shaft | 46-60shift/min | 39-60shift/min | 35-60shift/min | 35-60shift/min | 35-60shift/min |
| Helical blade quantity | 4 | 4 | 4 | 4 | 4 |
| Remarks | Speed of main shaft is minimum ,could adjust higher according to different current ,load and capacity | ||||
